High Thermal Stability Transformer Fluid
Transformer oil, as an insulating and heat dissipating medium material for transformers in power transmission and transformation projects, is one of the important factors for the safe operation of substations. Therefore, the basic functional requirements of transformer oil are insulation and heat dissipation, while high withstand voltage and low dielectric loss value are the basic electrical performance requirements. Along with the development of highvoltage power transmission technology, transformer oils need high oxidation stability, thermal stability and good resistance to gas precipitation in order to adapt to highvoltage conditions. In addition, trace water, particulate impurities, has become a strict control index.
Product Details：High Thermal Stability Transformer Fluid
When a transformer operates under load, it experiences two main types of losses: "copper consumption" and "core loss," both of which produce heat. If this heat is not effectively dissipated, it can accumulate, raising the temperature within the iron core. This accumulation poses a risk of damaging the solid insulation of the coil, potentially leading to burnout. Utilizing transformer oil allows for effective heat management; the oil absorbs the heat generated in the coils and circulates to release it, maintaining safe operational conditions for the equipment.
Parameter：
Sports Event | Quality Indicators | measured value | Test Methods |
Functional characteristics | |||
Pour Point/°C | -50 | -57.5 | ISO 3016 |
Kinematic viscosity (40℃)/(m㎡/s) | ≯12 | 9.52 | ISO 3104 |
Kinematic viscosity (-10°C)/(mm²/s) | ≯1800 | 1028 | ISO 3104 |
Water content/(mg/kg) | ≯30/40 | 9.0 | IEC 60814 |
Breakdown voltage/kV (untreated oil) | ≮30 | 64.5 | IEC 60156 |
Density (20°C)/(g/ml) | ≯895 | 886 | ISO 12185 |
Dielectric loss factor (90°C) | ≯0.005 | 0.0005 | IEC 60247 |
Refining/stabilizing properties | |||
exterior condition | Clear and transparent, free of sediment and suspension (of atmospheric pollution) | Clear and transparent, free of sediment and suspension (of atmospheric pollution) | visual assessment |
Acid value (mgKOH/g) | ≯0.01 | 0.0008 | IEC 62021- 1 |
Interfacial tension/(mN/m) | No general requirements | 45.3 | ISO 6295 |
Total sulfur content (mass fraction)/% | No general requirements | No general requirements | ISO 14596 |
corrosive sulfur | non-corrosive | non-corrosive | DIN 51353 |
Content of antioxidant additives (mass fraction)/percent Oil with antioxidant additives (U) | ≯0.08 | 0.065 | IEC 60666 |
2-Furfural content/(mg/kg) | ≯0.1 | 0.012 | IEC 61198 |
Operational characteristics | |||
Oxidation stability (120°C) Test time: 332h | - | - | - |
--Total acid value (in KOH)/(mg/g) | ≯1.2 | 0.04 | IEC 61125 Act C |
--Oil sludge (mass fraction)/% | ≯0.8 | 0.020 | IEC 61125 Act C |
--Dielectric loss factor (90°C) | ≯0.500 | 0.004 | IEC 60247 |
Gassing/(mm/min) | No general requirements | No general requirements | IEC 60628 |
Health Safety and Environmental Characteristics (HSE) | |||
Flash point (closed)/°C | ≮135 | 148.2 | ISO 2719 |
PCA content (mass fraction)/% | ≯3 | 0.8 | BS 2000 Part 346 |
Polychlorinated biphenyl (PCB) content/(mass fraction)(mg/kg) | undetectable | undetectable | IEC 61619 |
1. Applicable Industry
Drilling equipment: Transformer oil functions as a lubricant, effectively reducing friction and wear, while maintaining the stability of equipment in high-temperature scenarios.
Oilfield Electrical Equipment: In oilfield electrical systems, transformer oil offers insulation and cooling, ensuring consistent reliability in harsh operational environments.
Electric Locomotives: In the electrical systems of electric locomotives, transformer oil is used to provide insulation, ensure safe electric current transmission, and assist in dissipating heat.
Signal Systems: Transformer oil is applied in railroad signaling equipment to provide insulation, which enhances both the safety and efficiency of the signaling system.
2. Oil Change Inspection
Operational condition and empirical judgment play a significant role in transformer maintenance. Analyzing the transformer's operating history and maintenance records is essential. Frequent failures or a noticeable drop in performance may necessitate an evaluation of the oil quality and potential replacement. Additionally, it is important to consider the design life and age of the transformer. If the transformer is nearing or has exceeded its design life, changing the oil might be crucial for ensuring safe and reliable operation.

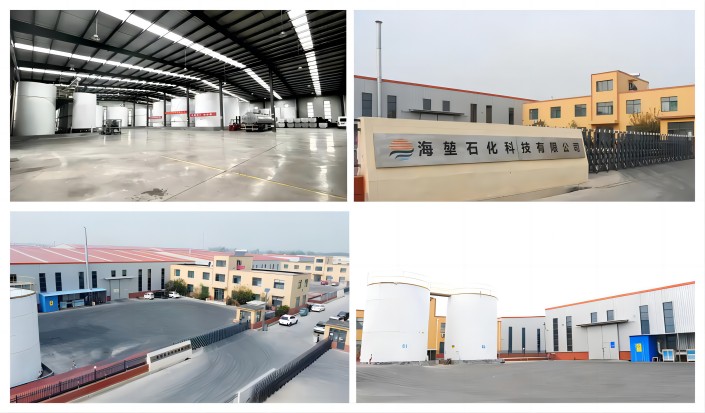

Own Factory
