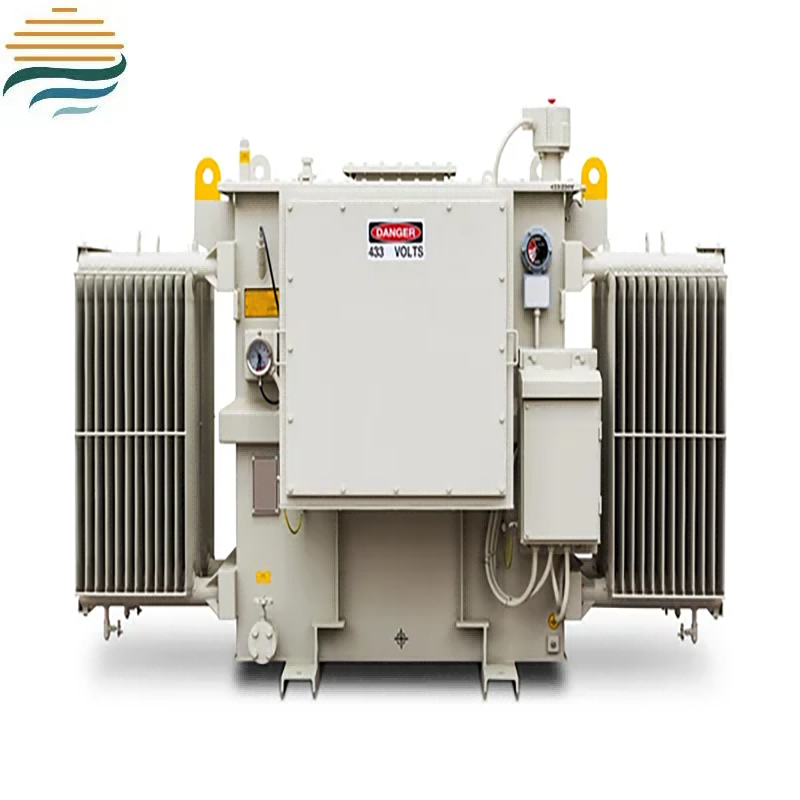

Oil-Immersed Regulating Transformer
The oil-immersed transformer, known for its stable and dependable performance, provides a solid foundation for power supply across diverse industries. Its quiet contributions are crucial to urban lighting, industrial operations, transportation, and everyday life, positioning it as an important driver of social advancement.
Product Details：Oil-Immersed Regulating Transformer
Easy maintenance is a significant reason why oil-immersed transformers are widely favored. Regular inspections of the oil level, temperature, and condition help to prevent failures effectively. Moreover, the replacement and replenishment of insulating oil are quite manageable, resulting in lower maintenance costs.
Parameter：
Rated Capacity | Voltage Raito (kv) | Vector Group | Loss values for S9 serial transformer | Loss values for S10 serial transformer | Loss values for S11 serial transformer | No-load current | Impedance | Weight | Outline Dimension | Gauge | |||||||
(kVA) | HV | LV | No- load Loss | Full- load Loss | No- load Loss | Full- load Loss | No- load Loss | Full- load Loss | (%) | (%) | Oil weight | Total weight | L | W | H | (mm) | |
630 | 35 38.5±5% or ±2x2.5% | 6.3 6.6 10 10.5 11 | Yd11 | 1.04 | 8.28 | 0.94 | 7.87 | 0.83 | 7.78 | 1.1 | 6.5 | 0.65 | 2.9 | 2100 | 1300 | 2300 | 820 |
800 | 1.23 | 9.9 | 1.11 | 9.4 | 0.98 | 9.4 | 1 | 0.7 | 3.2 | 2200 | 1350 | 2350 | 820 | ||||
1000 | 1.44 | 12.15 | 1.3 | 11.54 | 1.15 | 11.54 | 1 | 0.85 | 3.5 | 2350 | 1450 | 2400 | 820 | ||||
1250 | 1.76 | 14.67 | 1.58 | 13.94 | 1.41 | 13.94 | 0.9 | 1.01 | 3.84 | 2500 | 1600 | 2450 | 1070 | ||||
1600 | 2.12 | 17.55 | 1.91 | 16.67 | 1.7 | 16.67 | 0.8 | 1.2 | 5 | 2600 | 1700 | 2500 | 1070 | ||||
2000 | 2.72 | 19.35 | 2.45 | 18.38 | 2.18 | 18.38 | 0.7 | 1.28 | 6 | 2730 | 1800 | 2600 | 1070 | ||||
2500 | 3.2 | 20.7 | 2.88 | 19.67 | 2.56 | 19.67 | 0.6 | 1.4 | 7 | 2870 | 1900 | 2700 | 1070 | ||||
1. Transformer Applications in Renewable Energy
Smart Grid: With the increasing adoption of renewable energy, transformers are becoming essential components of smart grids. These grids monitor power demand and supply in real time, with transformers adjusting voltage levels to maintain stable power distribution. Additionally, transformers can be integrated with other systems, such as energy storage solutions, to optimize the efficiency of power utilization.
Battery Storage: In renewable energy applications, transformers are used in conjunction with battery storage systems to convert the voltage for charging into a level suitable for the batteries. During peak demand times, transformers can also convert and feed the stored energy back into the grid, helping to balance supply and demand effectively.
2. Application Scenarios-Industrial Sectors
Motor Control and Drive Systems: In industrial applications, three-phase three-winding transformers are extensively utilized for motor control and drive systems. They facilitate the starting, stopping, and speed regulation of motors, catering to the diverse power needs of various industrial machinery. This enhances the stability and efficiency of production processes.

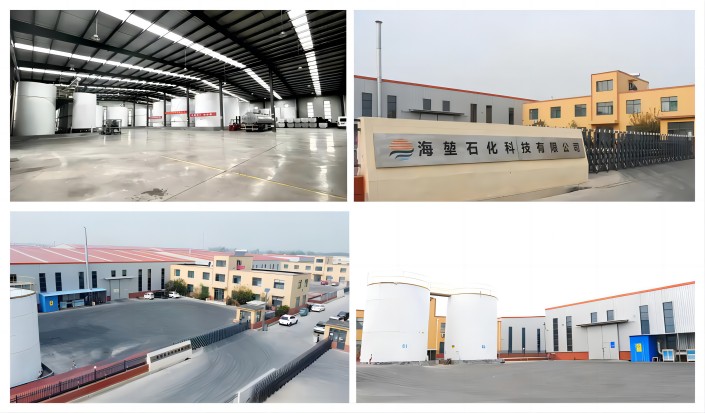

Own Factory
