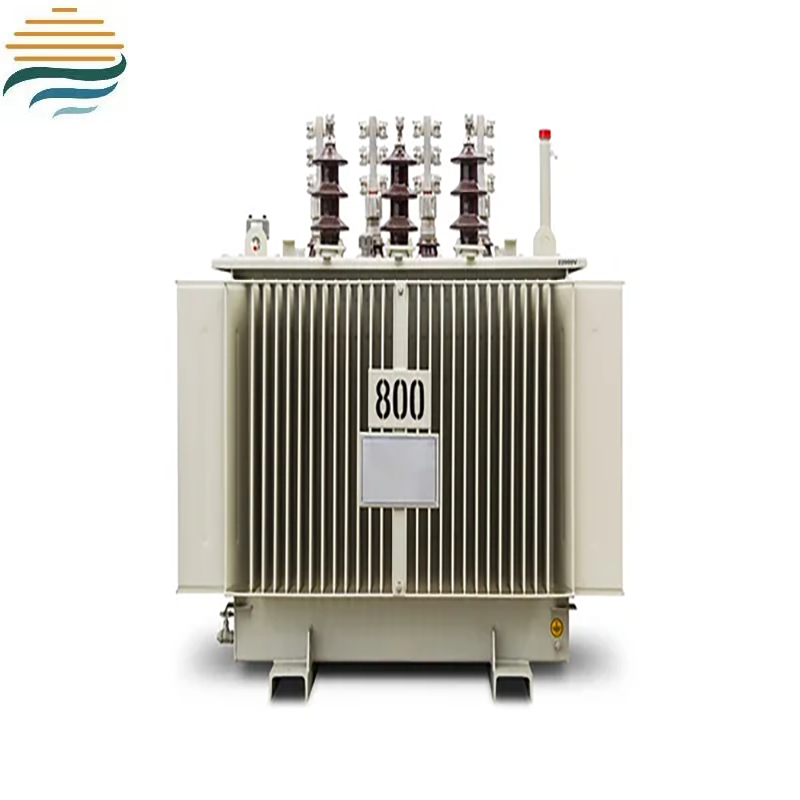

Energy Saving Oil-Immersed Transformer
Oil-immersed transformers are popular partly due to their maintenance simplicity. Consistent monitoring of the oil level, temperature, and condition can effectively avert potential failures. Additionally, the process for replacing and replenishing insulating oil is relatively easy, which helps to minimize maintenance costs.
Product Details：Energy Saving Oil-Immersed Transformer
Oil-immersed transformers, frequently utilized for voltage step-up, step-down, interconnection, and power distribution purposes, consist of an iron core, coils, insulation materials, and an oil-filled tank. These transformers are effectively insulated by specialized transformer oil.
Parameter：
Rated Capacity | Voltage Raito (kv) | Vector Group | Loss values for S9 serial transformer | Loss values for S10 serial transformer | Loss values for S11 serial transformer | No-load current | Impedance | Weight | Outline Dimension | Gauge | |||||||
(kVA) | HV | LV | No- load Loss | Full- load Loss | No- load Loss | Full- load Loss | No- load Loss | Full- load Loss | (%) | (%) | Oil weight | Total weight | L | W | H | (mm) | |
630 | 35 38.5±5% or ±2x2.5% | 6.3 6.6 10 10.5 11 | Yd11 | 1.04 | 8.28 | 0.94 | 7.87 | 0.83 | 7.78 | 1.1 | 6.5 | 0.65 | 2.9 | 2100 | 1300 | 2300 | 820 |
800 | 1.23 | 9.9 | 1.11 | 9.4 | 0.98 | 9.4 | 1 | 0.7 | 3.2 | 2200 | 1350 | 2350 | 820 | ||||
1000 | 1.44 | 12.15 | 1.3 | 11.54 | 1.15 | 11.54 | 1 | 0.85 | 3.5 | 2350 | 1450 | 2400 | 820 | ||||
1250 | 1.76 | 14.67 | 1.58 | 13.94 | 1.41 | 13.94 | 0.9 | 1.01 | 3.84 | 2500 | 1600 | 2450 | 1070 | ||||
1600 | 2.12 | 17.55 | 1.91 | 16.67 | 1.7 | 16.67 | 0.8 | 1.2 | 5 | 2600 | 1700 | 2500 | 1070 | ||||
2000 | 2.72 | 19.35 | 2.45 | 18.38 | 2.18 | 18.38 | 0.7 | 1.28 | 6 | 2730 | 1800 | 2600 | 1070 | ||||
2500 | 3.2 | 20.7 | 2.88 | 19.67 | 2.56 | 19.67 | 0.6 | 1.4 | 7 | 2870 | 1900 | 2700 | 1070 | ||||
1. Transformer Applications in Renewable Energy
Smart Grid: With the popularization of renewable energy, the role of transformers in the smart grid is becoming more and more important. Smart grids are able to monitor power demand and supply in real time, in which transformers are responsible for adjusting the voltage to ensure a stable distribution of power. Transformers can also be used in conjunction with other equipment, such as energy storage systems, to optimize the efficiency of power usage.
Battery storage: In renewable energy systems, transformers can be used in conjunction with battery storage systems to convert the voltage used to charge batteries to a voltage suitable for the batteries. During periods of peak demand, the transformer is able to convert and feed the stored power back into the grid, balancing supply and demand.
2. Application Scenarios-Industrial Sectors
Industrial Equipment: In industrial environments, transformers are utilized in equipment like electric motors, welders, and heating systems to provide the necessary voltage and current. For example, large manufacturing facilities rely on transformers to supply the substantial current needed for starting and operating heavy electric motors.
Power Supply Devices: Transformers are commonly found in many electronic devices, including laptops and phone chargers. They convert the alternating current (AC) from household or office sources into the direct current (DC) that these devices require, while also reducing the voltage. The transformer inside the power adapter is capable of handling various voltage standards, ensuring that devices remain compatible.

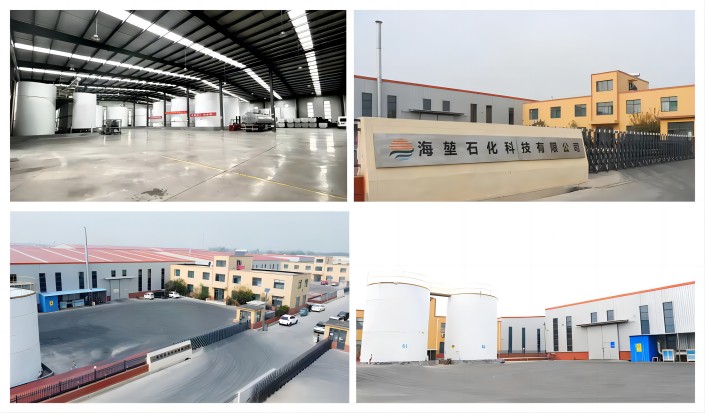

Own Factory
Employees at Working
Transportation
Enterprise Culture
In the pursuit of excellent quality, we make a solemn promise to our customers. From the purchase of raw materials to the production of goods, we strictly monitor the quality of each step. This is to guarantee that each product can meet or even go beyond what customers expect, so as to earn the trust of the market.
