Cycloalkane Based Transformer Oil U-10
U-10 transformer oil is a natural ester oil. Natural ester is a renewable resource, strong biodegradability, its triglyceride chemical structure of glycerol in the three hydroxyl groups by different fatty acid esterification, belongs to the K class of high ignition point transformer insulating oil.
Product Details：Cycloalkane Based Transformer Oil U-10
The ignition point of this product can reach 360 ℃, with small flammability and certain self-extinguishing function. In terms of electrical performance, the breakdown voltage strength of natural ester insulating oil after thermal aging is better than that of mineral insulating oil.
PARAMETER：
Sports Event | IEC60296:2020 TVBUs (LCSET-30°C) Quality indicators | Typical properties | Test Methods |
Functional characteristics | |||
Pour Point/°C | ≯-20 | -25 | ISO 3016 |
Kinematic viscosity (40°C)/(mm²/s) | ≯12 | 11.5 | ISO 3104 |
Kinematic viscosity (-30°C)/(mm²/s) | ≯1800 | 1400 | |
Water content/(mg/kg) | ≯30 | 18 | IEC 60814 |
Breakdown voltage/kV | - | - | IEC 60156 |
-Untreated oil | ≮30 | 40-70 | |
-Treated oil | ≮70 | >70 | |
Density (20°C)/(kg/m³) | ≯895 | 889 | ISO 12185 |
Dielectric loss factor (90°C) | ≯0.005 | <0.001 | IEC 60247 |
Refining/stabilizing properties | |||
saturation (color theory) | ≯1.5 | 0.5 | ISO 2049 |
exterior condition | Clear and transparent, no precipitation | Clear and transparent, no precipitation | visual assessment |
Acid value/(mgKOH/g) | ≯0.01 | <0.01 | IEC 62021-1 |
Interfacial tension/(mN/m) | ≮40 | 46 | ASTMD 971 |
corrosive sulfur | non-corrosive | non-corrosive | DIN 51353 |
corrosive sulfur | - | non-corrosive | ASTMD 1275B |
Potentially corrosive sulfur | non-corrosive | non-corrosive | IEC62535 |
DBDS/(mg/kg) | Not detectable (<5) | not detected | IEC 62697-1 |
Antioxidant content/% | Not detectable (<0.01) | not detected | IEC 60666 |
Metal passivator/(mgkg) | Not detectable (<5) | not detected | IEC 60666 |
2-Furfural content and related substances (single component) (mg/kg) | Not detectable (<0.05) | <0.01 | IEC 61198 |
Operational characteristics | |||
Chlorine stability (164h) | - | - | IEC 61125 |
--Total acid value (mg KOH/g) | ≯1.2 | 0.70 | |
-- Oil sludge/% | ≯0.8 | 0.35 | |
--Dielectric loss factor (90°C) | ≯0.500 | 0.040 | IEC 60247 |
HSE Characteristics | |||
Flash point (closed)/°C | ≮135 | 145 | ISO 2719 |
PCA content/% | <3 | <3 | IP 346 |
Polychlorinated biphenyl (PCB) content/(mg/kg) | undetectable | undetectable | IEC 61619 |
1. Main components:
Insulating oils are mainly composed of polycyclic aromatic hydrocarbons (PAHs) and other low molecular compounds, which give them good chemical stability. In mineral insulating oils, the main components include chain alkane hydrocarbons (CH) and cycloalkane (CH) hydrocarbons. Synthetic insulating oils and vegetable oils, on the other hand, have their own unique chemical composition, but also have excellent chemical stability.
2. Chemical Properties:
The flash point and ignition point of insulating oils are usually high, which ensures that the equipment will not easily catch fire at high temperatures. Insulating oil has low density and moderate viscosity, these physical properties ensure its good fluidity and lubricity.
3. Storage container
(1) Material: The storage container should be a sealed, non-leaking container made of corrosion-resistant, abrasion-resistant material with good sealing performance.
(2) Inspection and Maintenance: The valves and ports on the storage container should be inspected and maintained regularly to ensure good sealing. Meanwhile, the container should be kept clean and dry to avoid contamination and oxidation of the oil.

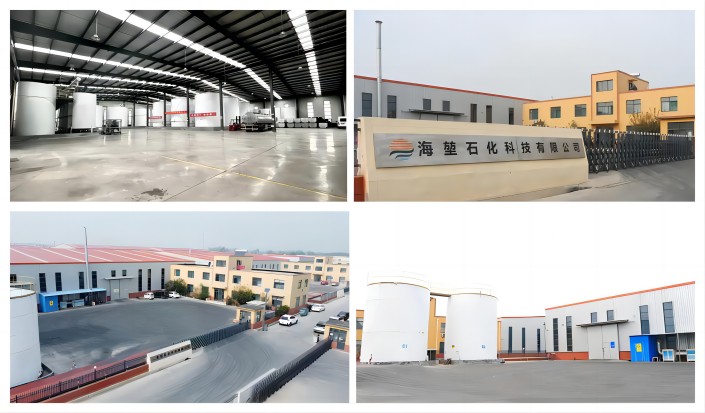

Own Factory
Employees at Working

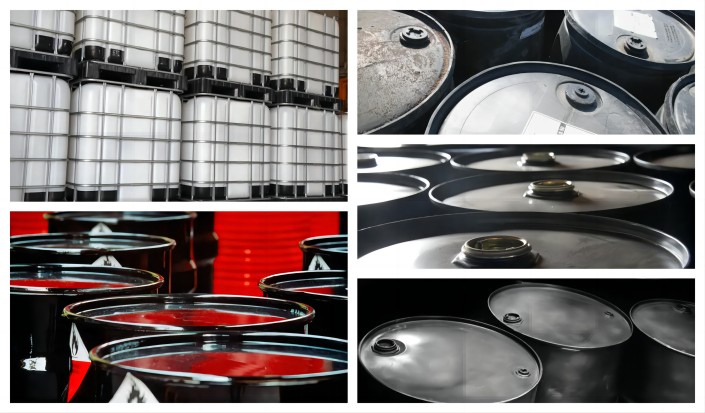

Canned Oil Products
