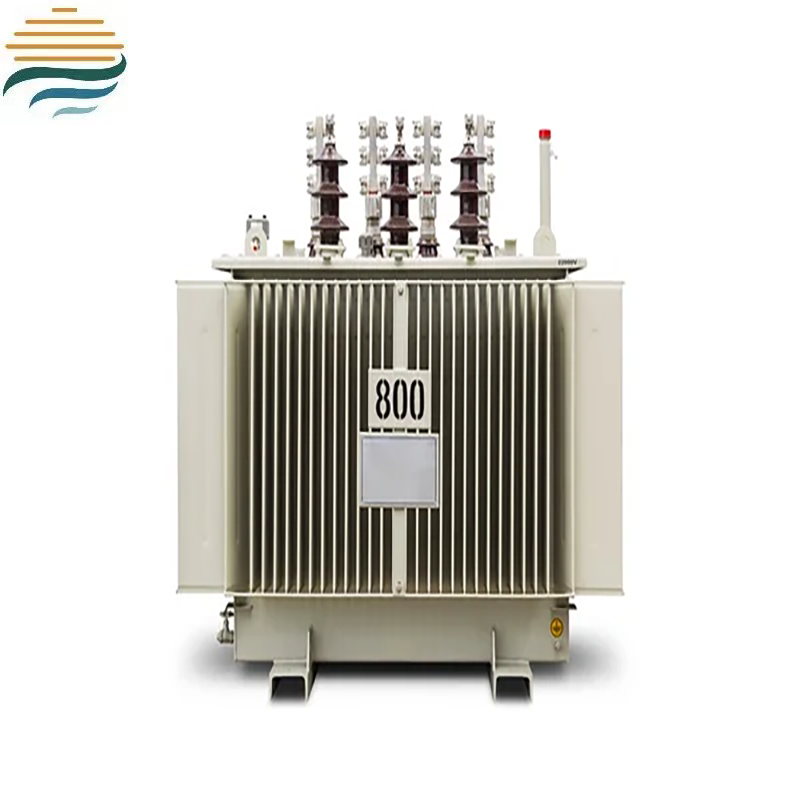

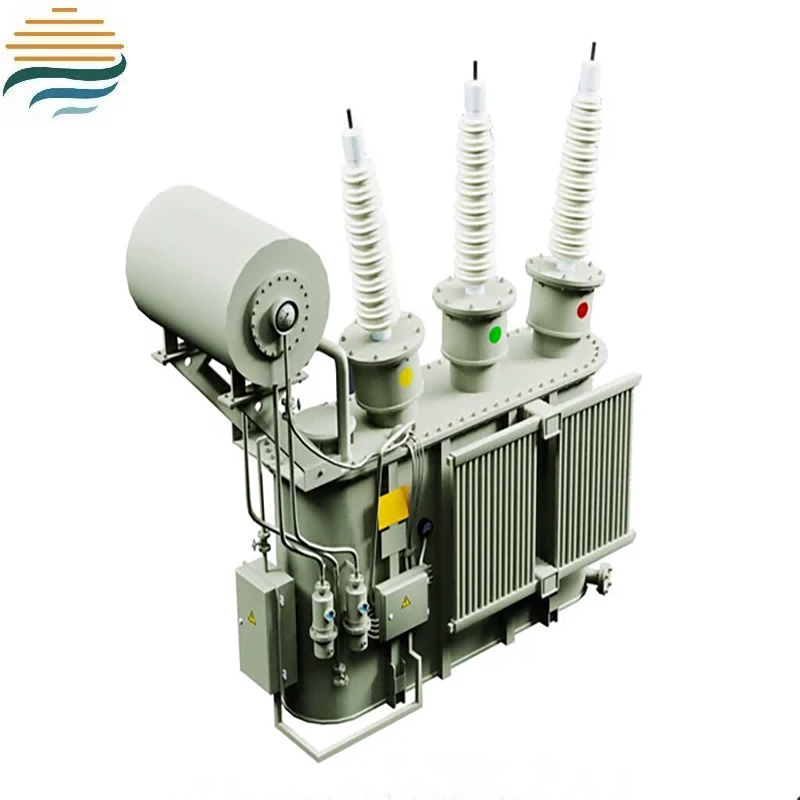

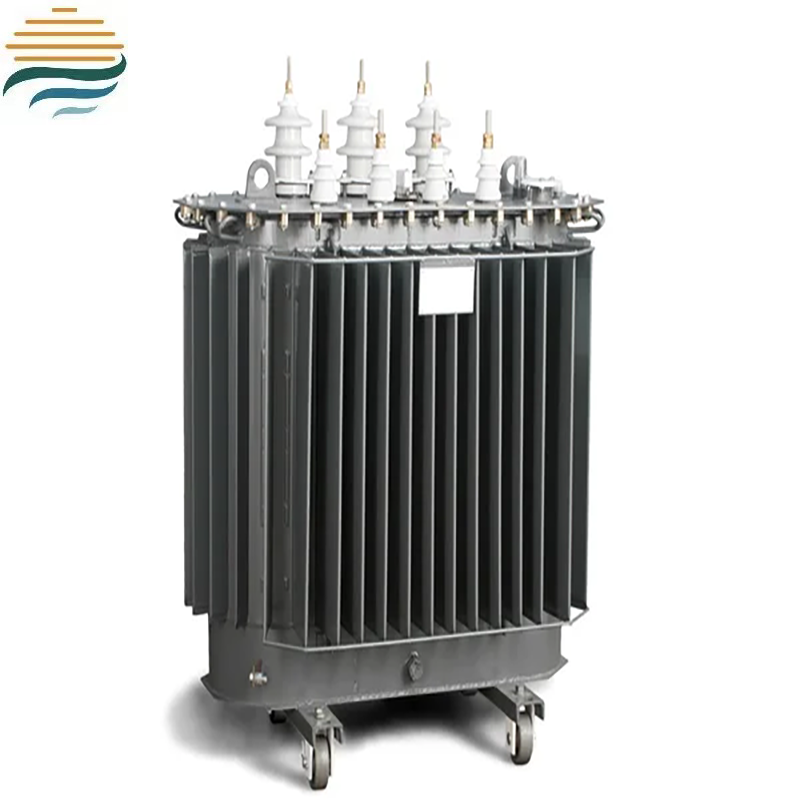

PCB Free And Energy Saving Oil-Immersed Transformer
As the cornerstone of power transmission and distribution, oil-immersed transformers are renowned for their exceptional heat dissipation efficiency. The adoption of top-grade insulating oil as a cooling fluid significantly minimizes temperature increases during operation, enhancing the transformer's stability and lifespan, thereby playing a pivotal safety role in expansive power grid configurations.

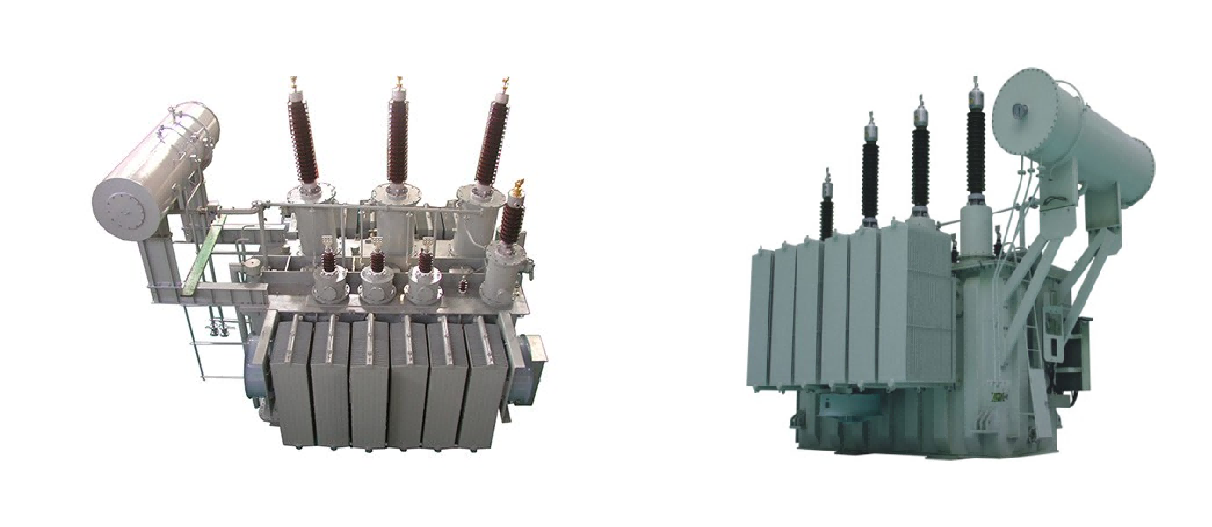

Product Details：Environmental Protection and Energy Saving Oil-Immersed Transformer
Renowned for their efficient energy transformation capabilities, oil-immersed transformers enjoy widespread appreciation in the power sector. Boasting a meticulous design, they seamlessly convert incoming power to the desired voltage, prevalent in power stations, substations, and industrial power setups, thereby facilitating energy's optimized utilization and distribution.
PARAMETER：
Model | OSFPZ-300000/400 | OSFPSZ-315000/400 | SFZ-4380000/420 |
Capacitance ratio (MVA) | 300/300/100 | 315/315/105 | 438/438 |
Ratio-voltage (kV) | 400±8×1.25%/115/10.5 | 400±8×1.25%/220/33 | 420(-10，+6)×1.25%/20 |
voltage regulation mode | Variable magnetic flux | Constant magnetic flux | Constant magnetic flux |
Open circuit losses (kW) | 78.01 | 55.96 | 149.56 |
Load losses (kW) | 581.95 | 430.88 | 779.93 |
Impedance voltage (%) | 14.3 (High-Medium) | 12.5 (high-medium) / 45 (high-low) / 30 (medium-low) | 14.31 |
Oil oil temperature rise (K) | 37.1 | 34.2 | 30.7 |
Maximum Winding temperature rise (K) | 56 | 47.3 | 47.5 |
No-load noise (dB (A)) | 64.7 | 60 | 67 |
Measured local level (pC) | 80 | 100 | 90 |
1. Selection Notes
When assessing performance indicators, emphasis is placed on transformer efficiency, temperature rise, insulation standards, and related parameters. These directly mirror the transformer's operational proficiency and steadfastness. Moreover, while adhering to performance criteria, cost-consciousness is key, requiring a balance between equipment costs, transportation expenses, installation fees, and other factors to identify the most financially viable transformer model.
2. Consider the installation environment and conditions
Selecting the Ideal Transformer: Based on the dimensions and configuration of the installation site, determine the suitable transformer model and installation method.
Adapting to Environmental Factors: Take into account the temperature, humidity levels, and altitude of the transformer's installation environment to select a model that can withstand those conditions.

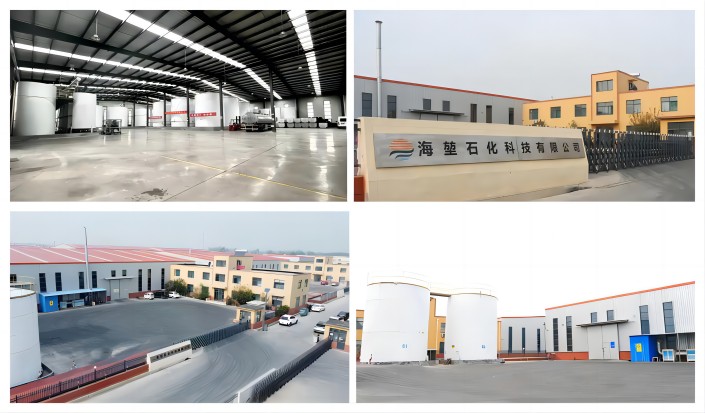

Own Factory
