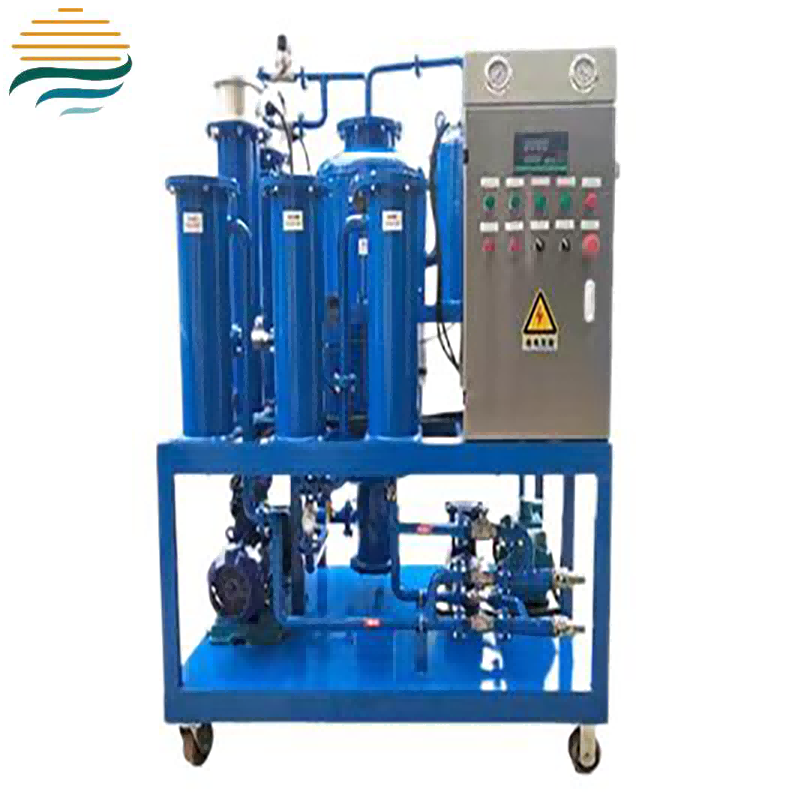

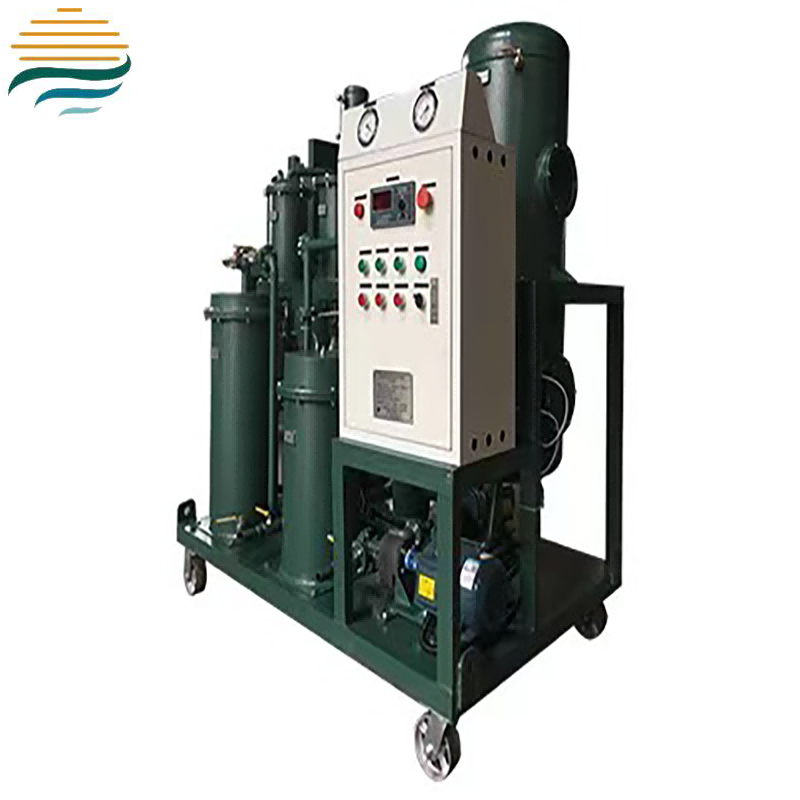

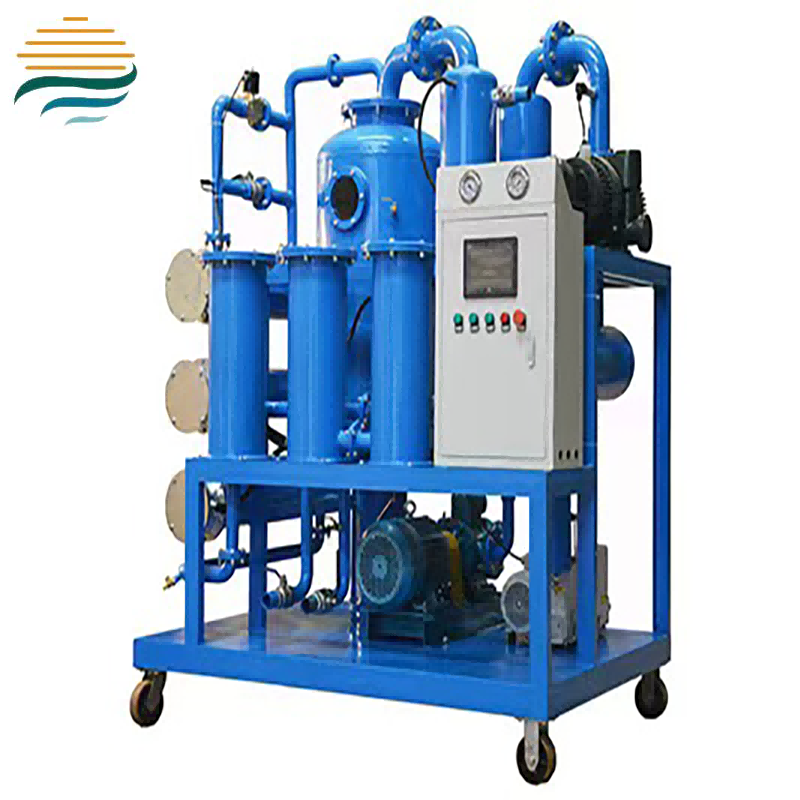

Oil Quality Enhancement Processor
The oil filter, an industrial oil purification apparatus, is utilized to filter, purify, and bring back or enhance the properties of polluted oil products. When it comes to the oil product, the oil filter is concerned with elements including its cleanliness state, moisture content, gas volume, acid value, viscosity index, flash point, insulation classification, and color.
Parameter：
Item | Unit | ZY-6 ZYA-6 | ZY-10 ZYA-10 | ZY-20 ZYA-2 0 | ZY-30 ZYA-30 | ZY-50 ZYA-50 | ZY-100 ZYA-10 0 | ZY-150 ZAY-15 0 | ZY-200 ZYA-20 0 | ZY-300 ZYA-300 |
Flow rate | L/min | 6 | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
Work range | Mpa | -0.06~-0.095 | ||||||||
Working pressure | Mpa | ≤0.4 | ||||||||
Thermostatic | ℃ | 20~80 | ||||||||
Power | / | 380V／50HZ three-phase(or at user＇s option) | ||||||||
Noise(db(A) | dB(A) | ≤65～85(depend on user＇s requirement) | ||||||||
Trouble-free operating time | h | ≥4000 | ||||||||
Continuous working time | h | ≥150 | ||||||||
Electric heating power | Kw | 9 | 15 | 15 | 15 | 30 | 48 | 54 | 72 | 96 |
total power | Kw | 10 | 17 | 17 | 17 | 33 | 52 | 63 | 80 | 105 |
Inlet(outlet)pipe | mm | Φ20 | Φ25 | Φ25 | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 |
1. Parameter
The flow rate represents the volume of oil processed by the oil filter within a unit time frame. It is generally measured in units such as liters per minute (L/min) or cubic meters per hour (m³/h). The flow rate is affected by aspects such as the type and specifications of the oil filter and the power of the oil pump. In practical scenarios, it is crucial to select an oil filter with a proper flow rate in accordance with the oil consumption and filtration demands of the equipment. This guarantees the timely filtration of the oil, fulfilling the needs of production or the operation of the equipment.
2. Structural Composition
Heating system: Some oil filters are equipped with heating systems, usually using electric heating or steam heating. The heating system can increase the temperature of the oil, reduce its viscosity, make it easier to separate water and impurities from the oil, and also help improve filtration efficiency.

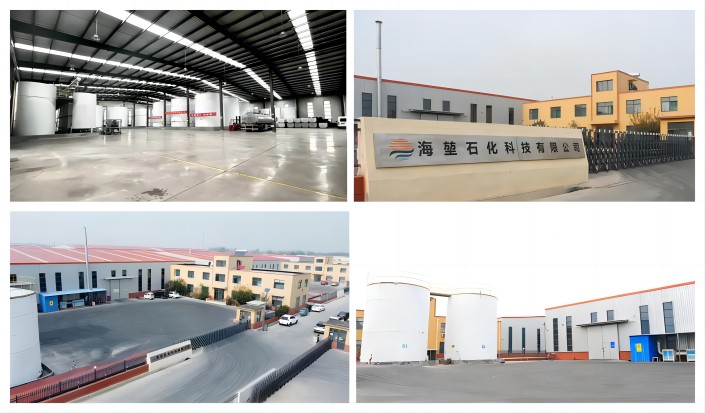

Own Factory
Using advanced vacuum filtration device, Haikun ensures high - quality oil products.
Employees at Working
Laboratory staff at Haikun are proficient in industrial oil sample preparation. Their professionalism ensures accurate test results.
Transportation
Our firm, Haikun, is experienced in sea freight. We use professional procedures to send transformer oils to Russia, South America, and Africa.
Enterprise Culture
Firmly convinced that only through continuous learning can one keep up with the times, we encourage our staff to stay eager to learn, actively embrace new knowledge and skills, and constantly enhance their overall qualities. This way, we can infuse fresh vitality into the enterprise's development.
Customer Testimonials
The insulating oil from this company is outstanding. They respect customer needs and maintain high product quality. The parameters are precise, and the assay sheets are reliable. The sales service was top - notch. - Central Asia, Abdulov Amir
