Capacitor Oil for Power Systems
This product is formulated with specific ratios of monobenzyl toluene (MBT) and dibenzyl toluene (DBT), along with an appropriate addition of functional materials. Via specialized refining processes such as degassing and dehydration, it exhibits remarkable physical, chemical, and electrical properties. It serves as a dedicated product for high - voltage and ultra - high - voltage full - film structure power capacitors, ensuring the reliability and high - efficiency operation of the capacitors.
Product Details：Capacitor Oil for Power Systems
Monobenzyl toluene and dibenzyl toluene insulating liquids represent a direction of technological innovation in capacitor applications. Their unique chemical composition not only enhances electrical insulation but also improves the thermal stability of capacitors. The use of this insulating oil allows capacitors to maintain efficient operation even under extreme working conditions, demonstrating their indispensable value in modern power systems.
Parameter：
Reference Standard:GB21221-2007 | ||
Item | Unit | Index Value |
Appearance | Colorless Transparent Liquid | |
Density(20℃) | g/cm³ | 0.980-1.020 |
Acid Number | mg KOH/g | ≤0.015 |
Flash Point | ℃ | ≥130 |
Pour Point | ℃ | ≤-55 |
Kinetic Viscosity(40℃) | mm²/s | ≤4.0 |
Breakdown Voltage (Sphericalelectrode/50Hz,2.5mm) | KV | ≥60 |
Dielectric Dissipation Factor tanδ(90℃-50Hz) | ---------- | ≤0.002 |
Electric volume Resistivity pV(9o℃) | Ω.m | ≥2.5*10¹² |
Relative PermittivityEY (9oC-50Hz) | ---------- | 2.45-2.65 |
Water Content | mg/kg | ≤75 |
Gassing Property | m³/min | (-)≥130 |
Chlorine Content | Mg/kg | ≤30 |
Epoxy Content* | Mg HCI/g | 1.6-2.0 |
1. Environmental Adaptability
Operating temperature range: Different use scenarios require different operating temperatures for capacitors. For example, capacitors working in high temperature environments, such as industrial furnaces and kilns, automobile engine compartments, etc., need to choose capacitor oils with high flash point, low volatility and good thermal stability; capacitors working in low temperature environments, such as electronic equipment and refrigeration equipment in polar regions, etc., need to choose capacitor oils with a low pouring point in order to ensure that capacitor oils can still work properly at low temperatures.
2. Selection of Attention Factors
Breakdown voltage: It is a crucial indicator for evaluating the insulation capacity of capacitor oil. The higher the breakdown voltage, the better the insulation performance of capacitor oil under high - voltage conditions. This can effectively prevent faults like short - circuits inside the capacitor. Generally, it is required that the breakdown voltage of capacitor oil should not be lower than a certain value, for example, 40 kV or so.

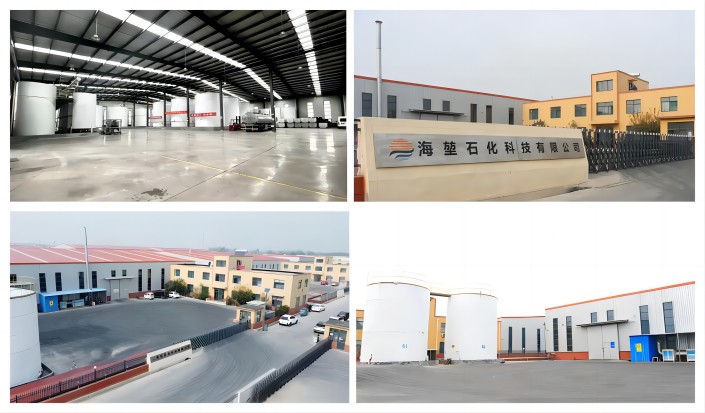

Own Factory
The 5000 - square - meter production workshops of Haikun are equipped with modern equipment.
Employees at Working
Laboratory specialists at Haikun use professional methods for industrial oil testing. Their work ensures reliable product performance.
Canned Oil Products
Haikun Petrochemical Technology Co., Ltd. has mastered packing techniques for sea - shipped goods. We use 200L steel containers and 20000L flexitanks for safe transportation of transformer oils.
Transportation
We at Haikun Petrochemical are experts in sea freight. Our stable shipping routes deliver insulating oils to various global destinations, including South America.
Enterprise Culture
We look upon innovation as the enterprise's life - vein. We continuously encourage technological innovation, management innovation, and service innovation. Thanks to continuous innovation, we continuously break through, lead the trends within the industry, and supply customers with products and services of improved quality.
Customer Testimonials
"I'm from Southeast Asia, and Haikun Petrochemical's industrial lubricants have been working wonders for our machinery. They respect customer demands and offer a product that is durable and efficient. The parameters are as promised, and the lab report gives me peace of mind. " - Singapore, Tan Wei Ming
